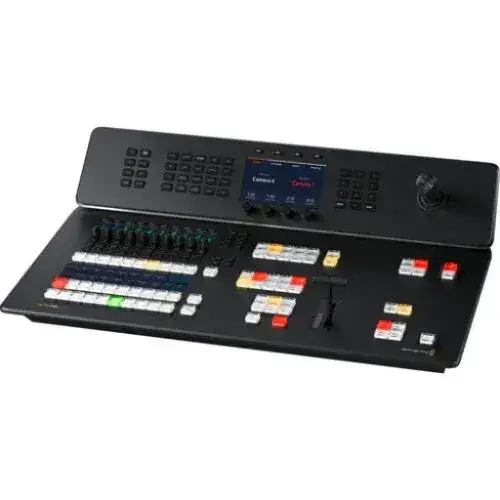

Blackmagic Design ATEM Television Studio 4K8

Blackmagic Design Atem 4K TV Studio Specifications Available M/E Layers 4 M/E Effect Types 1x DVE, Stinger 4x Chroma Key 7x Luma Key Downstream Keys 2x Chroma, Luma, DVE Generators 7x Pattern 2x Color Audio Mixing 58-Channel Mixing Processing Switch Type Pushbutton, Program, T-Bar Latency 10 Lines Resolution Processing UHD 4K @ 60 Color Processing 10-bit 4:2:2 RGB Input Number of Video Input Sources 8 Video Inputs 8x BNC (12G-SDI) Female Video Input Format SDI (10-bit 4:2:2 RGB) UHD 4K @ 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps Audio Inputs 1x BNC MADI Female 1x 2RCA Stereo Analog Female 2x XLR 3-Pin Analog Female 1x XLR 5-Pin Female Inline Audio Input SDI Output Video Output Channels 12 Video Outputs 12x BNC (12G-SDI) Female Output Video Format SDI (10-bit 4:2:2) RGB) UHD 4K at 23.98/24/25/29.97/30/50/59.94/60 fps 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps Audio Outputs 4 x 1/4" TRS Analog Female 1x BNC MADI Female 1x XLR 5-Pin Analog Female Onboard Audio Output SDI Multi-Display Output 16 Multi-Display Modes Monitor Output 1 x HDMI Port Connectivity Other Inputs and Outputs 1x BNC Reference Input 1x BNC Reference Output 1x BNC Time Code 1x BNC Time Code 4x RJ45 LAN I/O Ports 1x RJ45 Talkback I/O 1x RJ12 Remote I/O 2x USB-C Output Video Standards Compliance SMPTE 292M/296M/424M/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 Transfer Protocols Internet File Transfer Protocol (RTMP) Display Screen Resolution 1366 x 768 Hardware Operating System Compatibility macOS 12 to 13 or later Windows 10 to 11 Processor Not specified by manufacturer Wi-Fi Wi-Fi No Bluetooth No Power Inputs and Outputs 1x IEC C14 Input (100 to 240 VAC) 1x 4-pin XLR Input (12 VDC) Environmental Operating Temperature 32 to 72°F / 0 to 40°C Storage Temperature -4 to 140°F / -20 to 60°C Operating Humidity 0 to 90% Storage Humidity 0 to 90% General Dimensions 23 x 14.8 x 6.38 in / 58.4 x 37.6 x 16.21 cm Weight 14.9 lb / 6.8 kg Packaging Information Package Weight 26.76 lb Box Dimensions (L x W x H) 28.5 x 21.5 x 10 inches
